Industrial 220V-240V 1PH 50A Trigger
Industrial Trigger
Hardwired 50-amp control for heavy-duty 220V-240V single-phase tools.

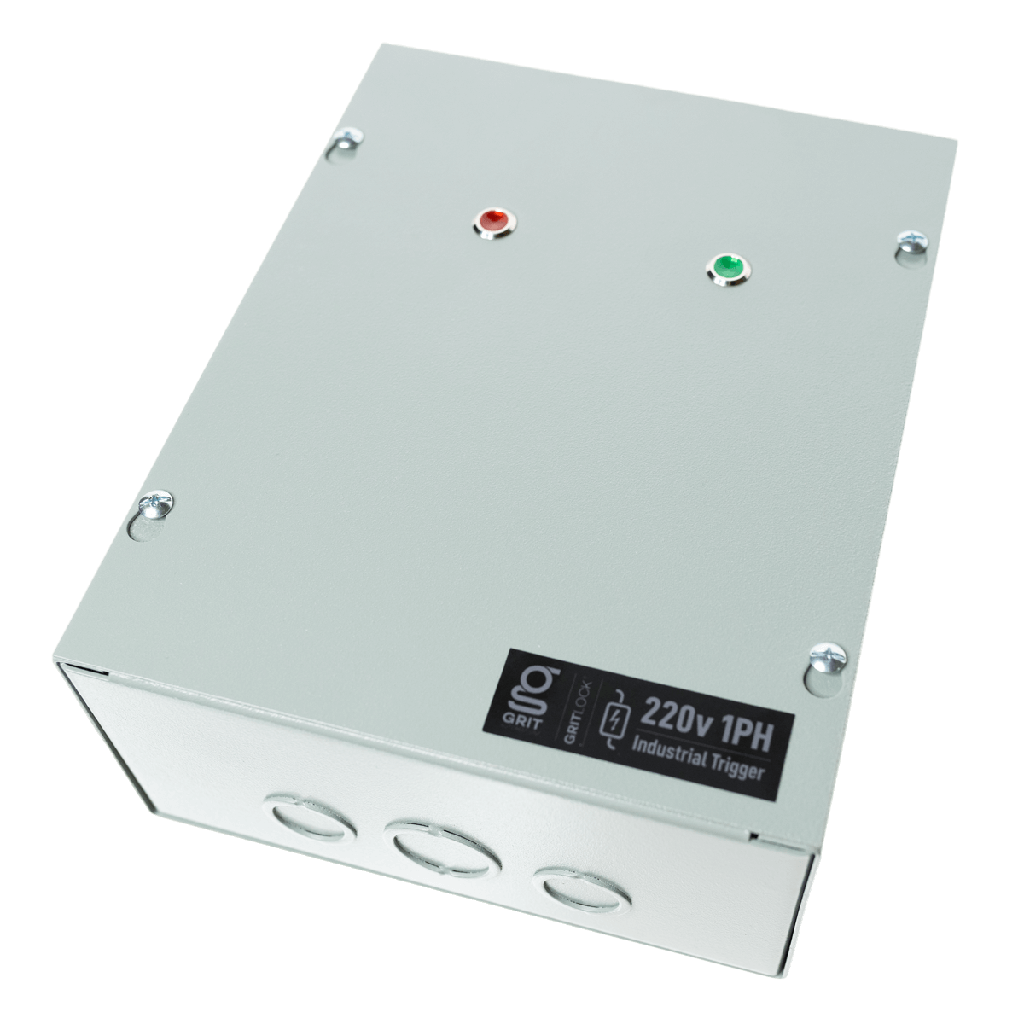

The Industrial 220V-240V 1PH Trigger drops a 50A contactor into a steel enclosure with knockouts for field wiring, giving you the same automated dust collection, runtime logging, and access-control lockout as the plug-in Triggers — scaled up for tools that draw too much current for a standard receptacle.
Key Features
- 50A contactor: Continuous-duty rated for heavy single-phase loads
- Metal field enclosure: 8" x 10" x 4" steel housing with 16 knockouts
- Automated dust collection: Opens blast gates and starts collectors on tool-on
- Access control lockout: Blocks power until an authorized badge is scanned
- Status LEDs: Red/green indicators show locked, idle, or running
Specifications
- SKU GA-TR2001
- Voltage 220V-240V
- Amperage 50A continuous
- Phase Single-phase (1PH)
- Enclosure 8" x 10" x 4" steel
- Knockouts 16, 3/4" to 1-1/4"
- Connectivity Wi-Fi to GRIT Hub
- Status Red/green LEDs
In the Box
- 1x GRIT Industrial 220V-240V 1PH 50A Trigger (GA-TR2001)
- Pre-wired 50A contactor in 8" x 10" x 4" metal enclosure
- Installation guide
Compatibility
For 220V-240V single-phase tools drawing up to 50A. Pro GRIT Track is required for RFID-enabled systems — contact GRIT for details. Hub Pro required for multi-zone automation and access control.
Installation
Mount the enclosure near the tool disconnect and land line and load conductors on the contactor terminals. We recommend a licensed electrician for all hardwired installations.
*GRIT Hub is required for device functionality.
Important Notes
Professional electrical installation recommended. Triggers in Pro GRIT Track systems are subject to a 20% software upgrade charge — contact GRIT before ordering if you plan to use RFID access control.
