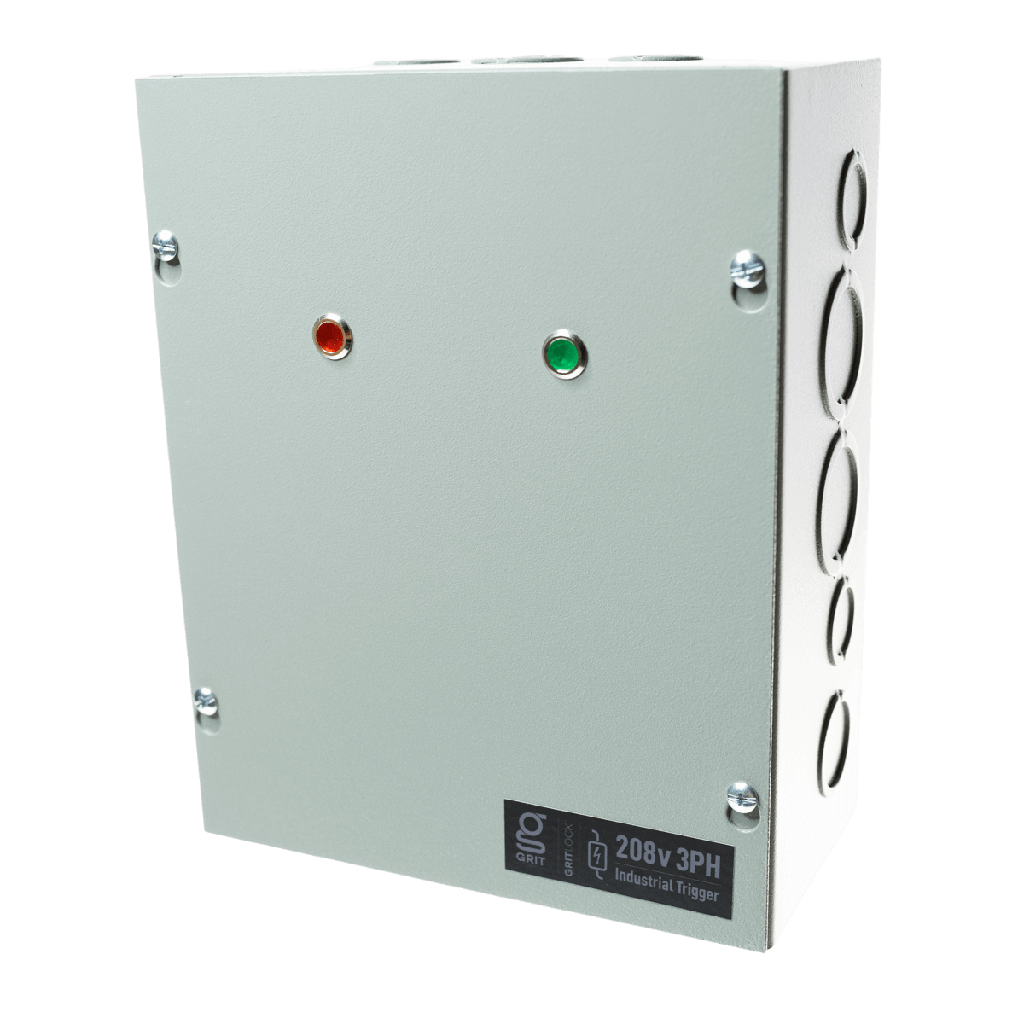

Industrial 208V-240V 3PH 50A Trigger
Industrial Trigger
Hardwired 3-phase control for 208V-240V industrial tools.
The Industrial 208V-240V 3PH Trigger gives you the same GRIT automation as the plug-in models — dust collection, runtime logging, access-control lockout — packaged with a 50A 3-phase contactor in a field-wireable steel enclosure for heavy shop and CNC equipment.
Key Features
- 50A 3-phase contactor: Continuous-duty, higher amperage available on request

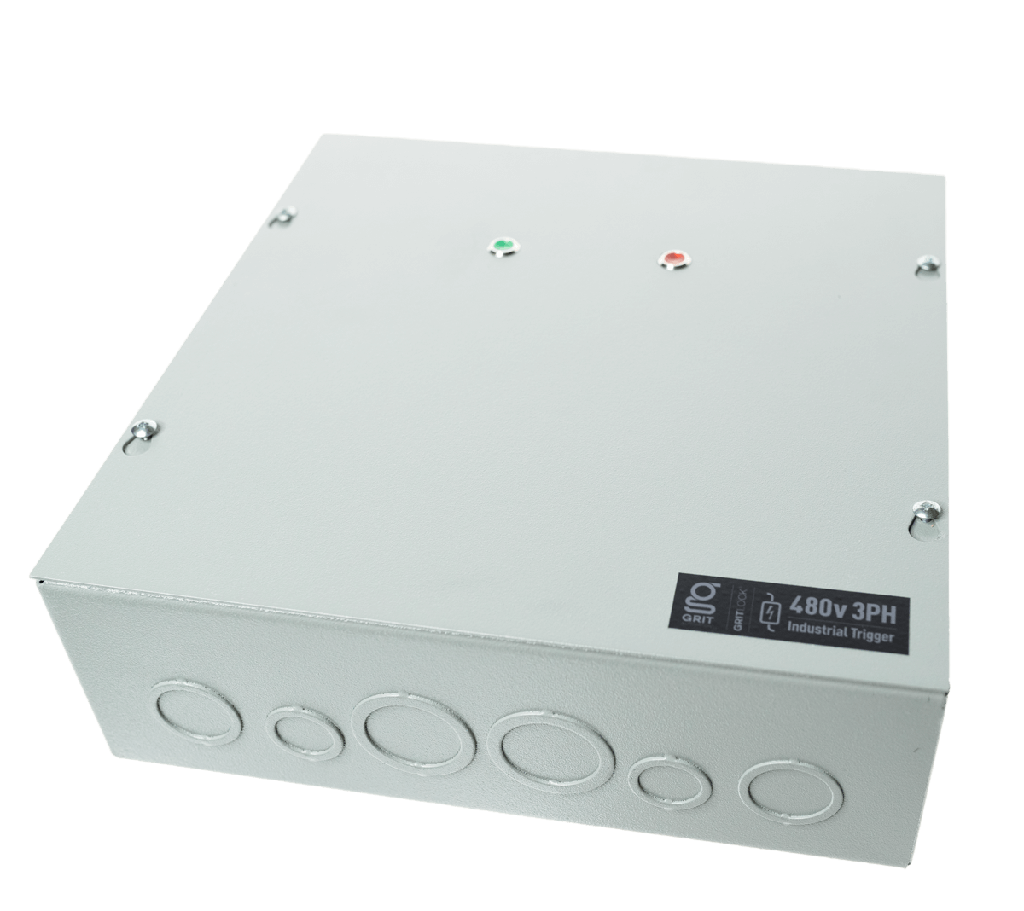

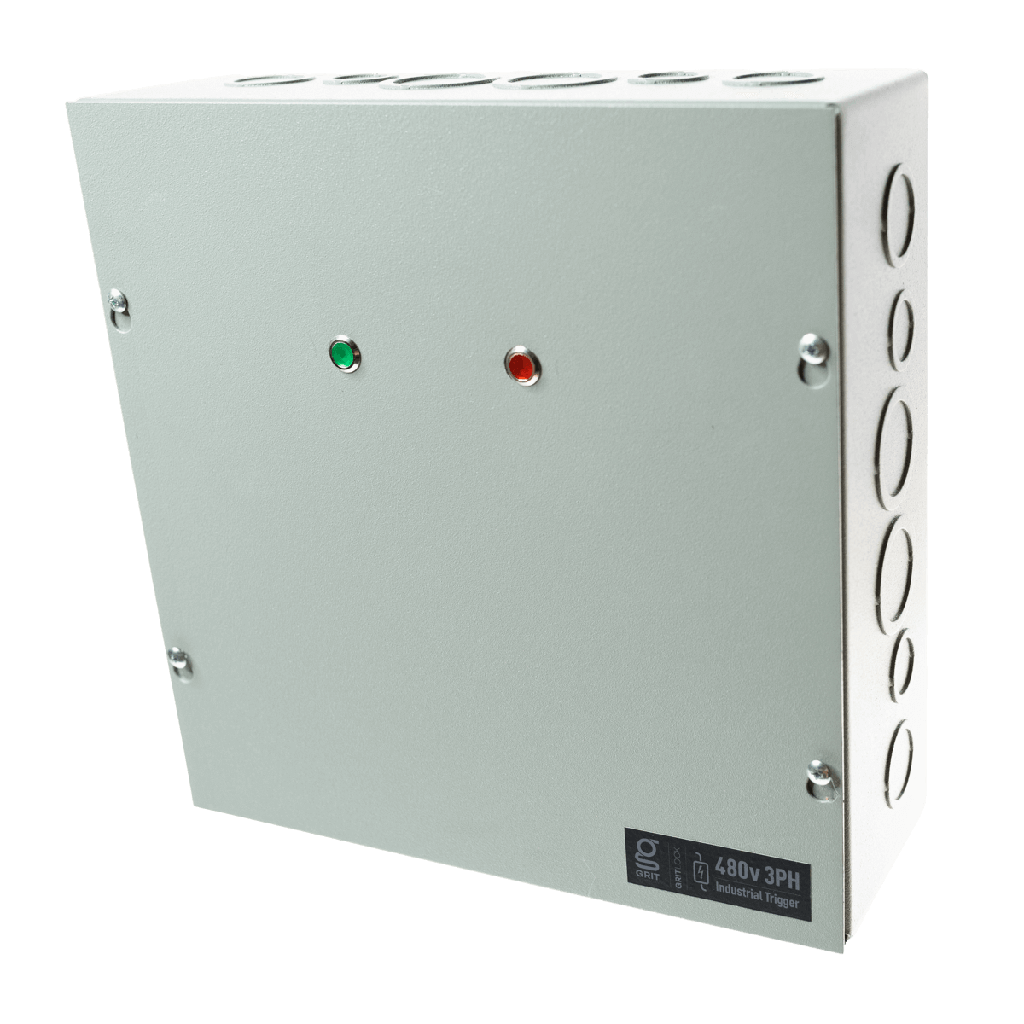

- Metal field enclosure: 8" x 10" x 4" steel housing with 16 knockouts
- Automated dust collection: Opens blast gates and starts collectors on tool-on
- Access control lockout: Blocks power until an authorized badge is scanned
- Status LEDs: Red/green indicators show locked, idle, or running
Specifications
- SKU GA-TR2002
- Voltage 208V-240V
- Amperage 50A continuous
- Phase 3-phase (3PH)
- Enclosure 8" x 10" x 4" steel
- Knockouts 16, 3/4" to 1-1/4"
- Connectivity Wi-Fi to GRIT Hub
- Status Red/green LEDs
In the Box
- 1x GRIT Industrial 208V-240V 3PH 50A Trigger (GA-TR2002)
- Pre-wired 50A 3-phase contactor in 8" x 10" x 4" metal enclosure
- Installation guide
Compatibility
For 208V-240V 3-phase tools drawing up to 50A. Higher-amperage contactors available on request. Pro GRIT Track is required for RFID-enabled systems — contact GRIT for details.
Installation
Mount the enclosure near the tool disconnect and land line and load conductors on the contactor terminals. We recommend a licensed electrician for all hardwired installations.
*GRIT Hub is required for device functionality.
Important Notes
Professional electrical installation recommended. Triggers in Pro GRIT Track systems are subject to a 20% software upgrade charge — contact GRIT before ordering if you plan to use RFID access control.
