Gate Control- 2.5" - 4"

Gate Control

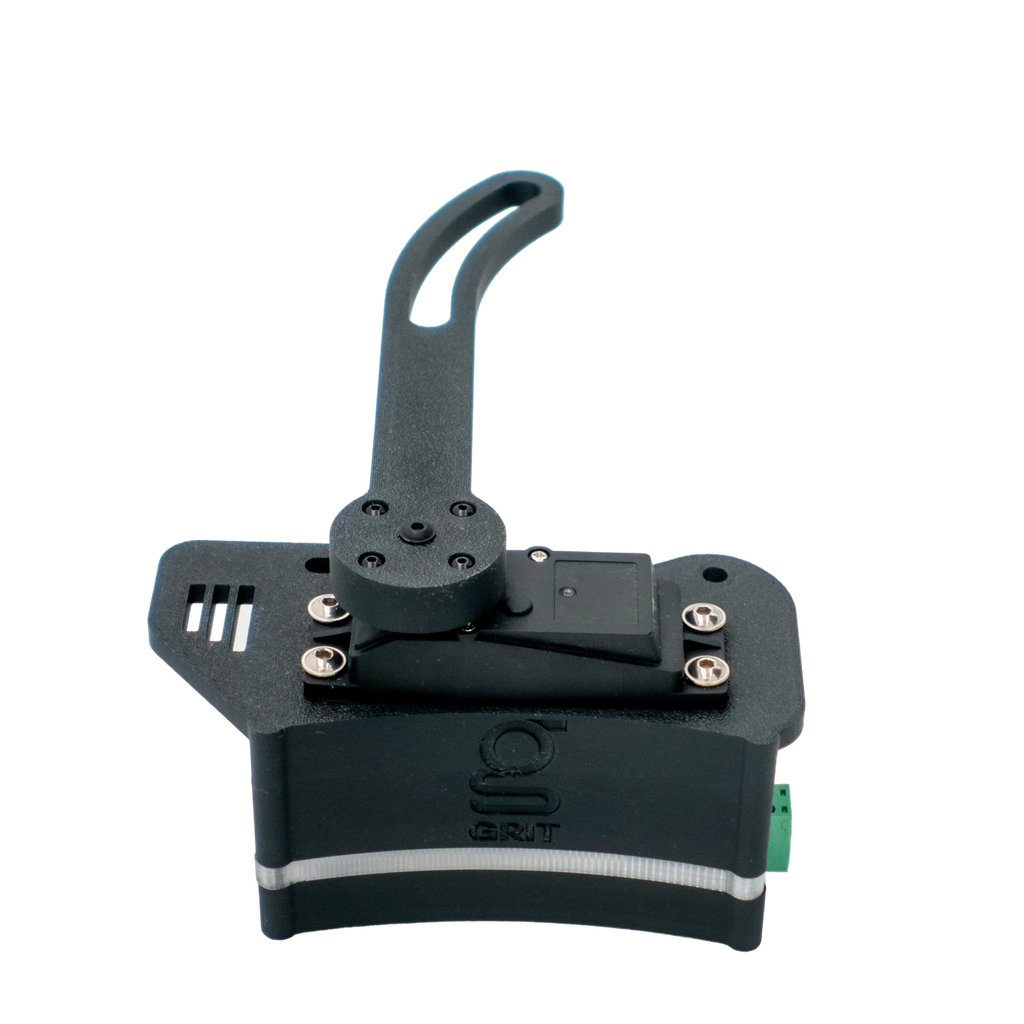

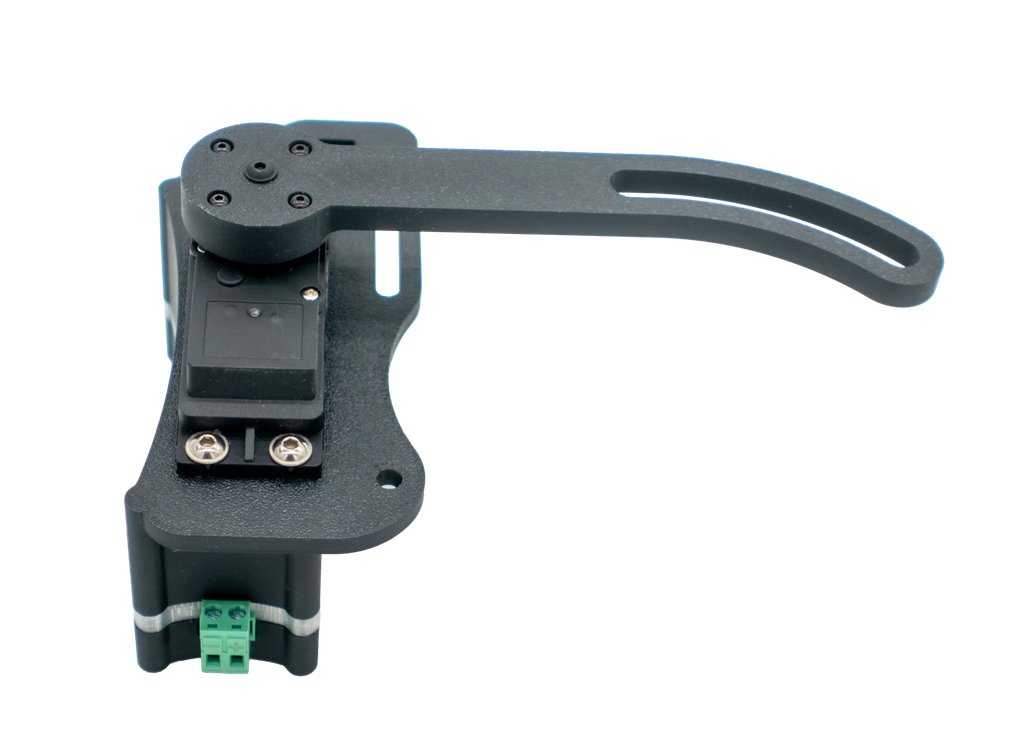

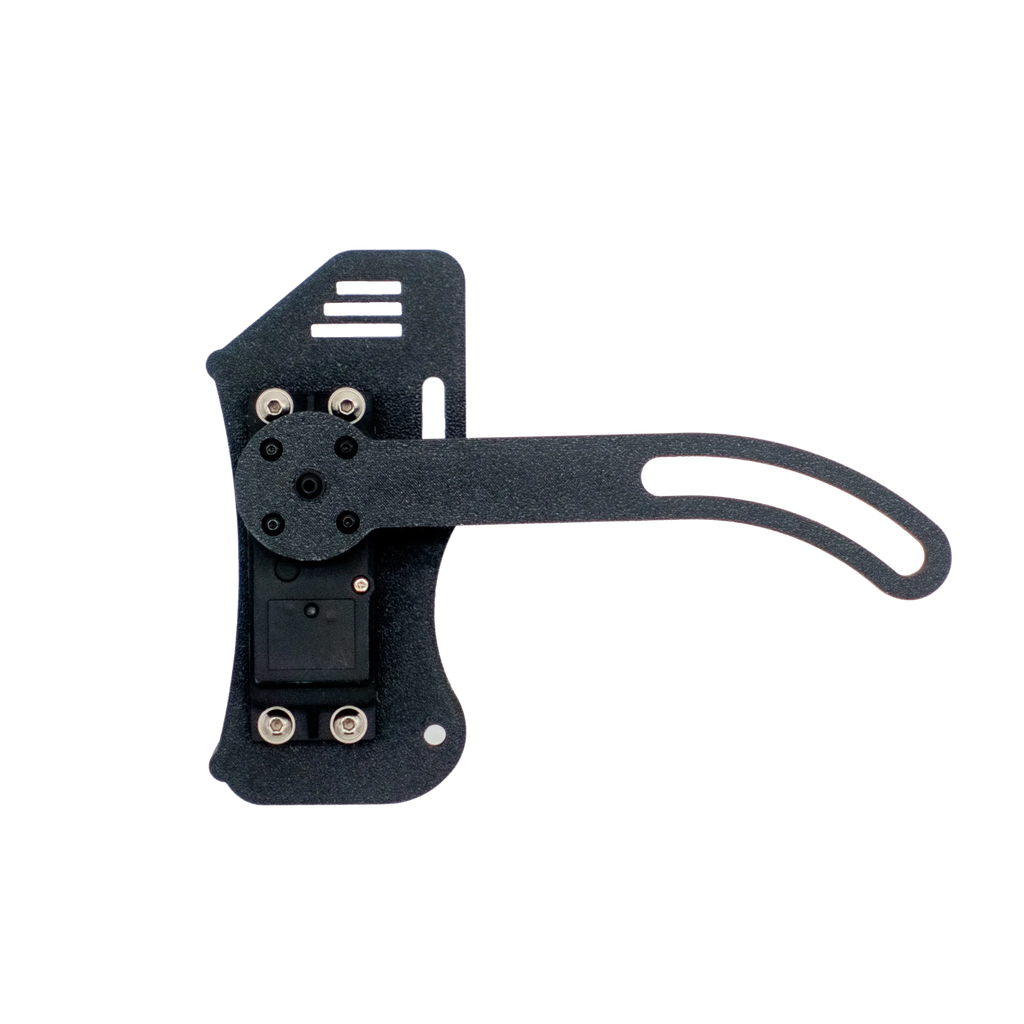

Automated actuator for 2.5", 3", and 4" metal blast gates.

The small-diameter Gate Control bolts onto any standard metal blast gate between 2.5" and 4", turning it into a Hub-controlled device. When a GRIT Trigger detects a tool running, the Hub opens the right gates and closes the rest — no rewiring your ductwork, no replacing your existing blast gates.

Key Features

• Automatic operation: Opens and closes in response to linked tool activity
• Universal fit: Bolts onto any standard metal blast gate from 2.5" to 4"
• Wireless mesh: Communicates with the GRIT Hub — no extra wiring to each gate
• Flexible mounting: Installs in multiple orientations to fit tight ductwork
• Daisy-chainable: Multiple gates share a single 12V power run
• Status LED: RGB LED shows open/closed indicator visible at each gate

Specifications

• Sizes 2.5", 3", 4"
• Power 12V AC
• Fits Standard metal blast gates
• Screws #10-24 x 1"
• Wire 10 ft, 18/2 thermostat
• Connectivity Mesh network to GRIT Hub
• Status Open/closed LED

In the Box

• 1x Bolt-on Gate Actuator (size selected at checkout)
• Gate arm sized for your selected diameter

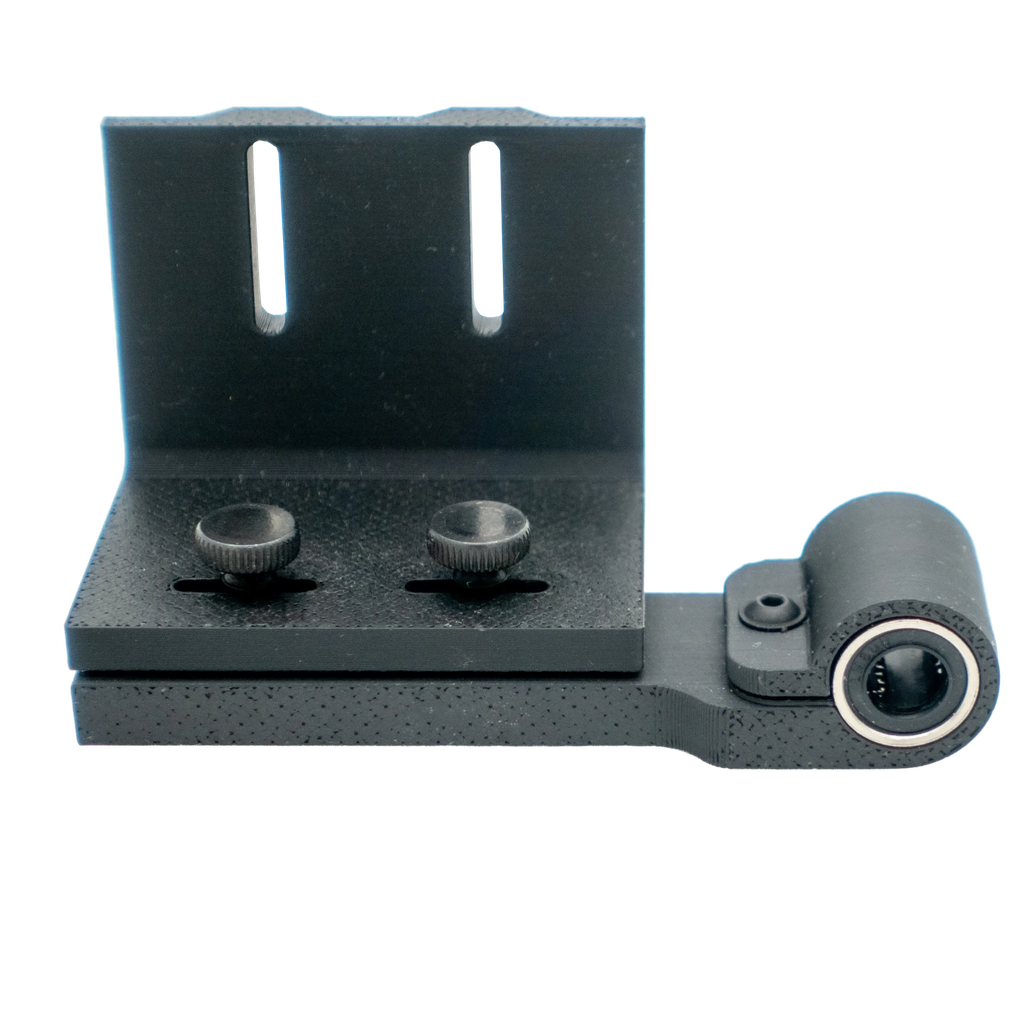

• Slide bracket
• 2x #10-24 x 1" screws and washer nuts
• Removable 12V low-voltage terminal
• 10 ft 18/2 solid copper thermostat wire

Compatibility

For existing metal blast gates between 2.5" and 4" in diameter. Blast gates themselves are not included. Power via the GRIT 12V Power Bank (sold separately) or any 12V AC supply. For 5"-8" gates, see the medium Gate Control; for 9"-12" gates, see the large Gate Control.

Installation

Bolt the actuator onto your existing blast gate using the included hardware, connect the gate arm and slide bracket, run 18/2 thermostat wire to a 12V supply, and pair with the Hub through the GRIT app. Daisy-chain additional gates off the same power run.

*GRIT Hub is required for device functionality. 12V Power Bank sold separately.

Important Notes

Blast gates are not sold by GRIT Automation. Systems with GRIT Track require a software upgrade (+20%) — contact us before ordering so we can configure your devices.
