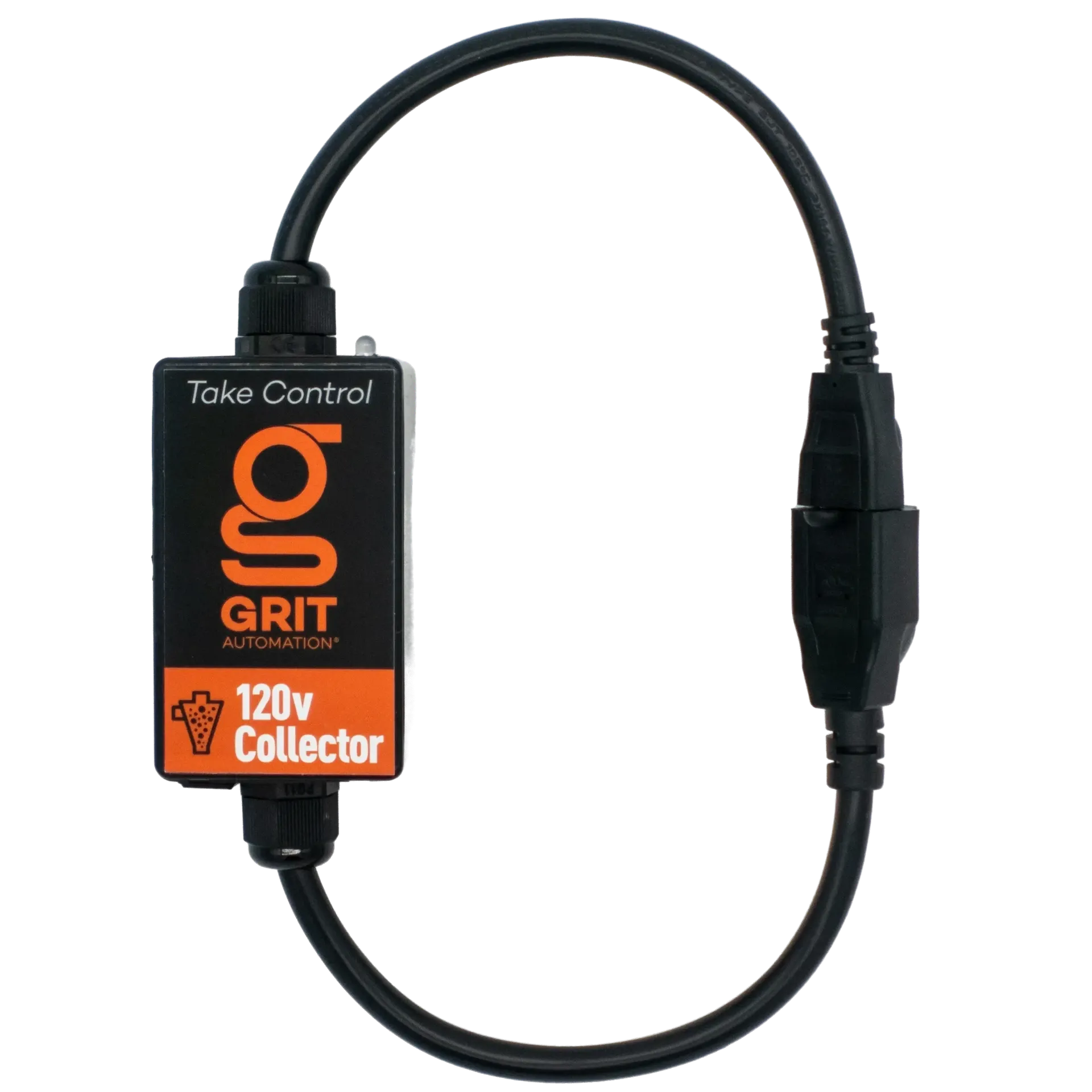

120v 15A Collector

120v 15A Collector

Collector

Plug-and-play automation for 120V single-stage dust collectors up to 15 amps.

The 120V Collector sits inline between any 120V single-stage collector and the wall outlet. When a GRIT Trigger detects a tool running, the Hub tells the Collector to switch on automatically — no rewiring, no retrofits, just plug-and-play automation for ShopVacs, Jet DCs, and similar.

Key Features

  • Inline relay: Switches the collector on and off on Hub command
  • Plug-and-play: No wiring changes, no access panels
  • Coordinated startup: Hub sequences the collector after blast gates open
  • Status LED: RGB indicator shows idle or running
  • Reliable pairing: Wi-Fi connection to the Hub

Specifications

  • SKU GA-CO1001
  • Voltage 120V
  • Amperage 15A continuous
  • Phase Single-phase
  • Plug Type NEMA 5-15
  • Cord 1 ft, 14 AWG
  • Connectivity GRIT Mesh Network
  • Status RGB LED

In the Box

  • 1x GRIT 120V 15A Collector (GA-CO1001)
  • 1x 14 AWG pass-through cord with NEMA 5-15 plug and receptacle

Compatibility

Works with any 120V single-stage dust collector or shop vacuum drawing up to 15A continuous on a NEMA 5-15 outlet — ShopVacs, 120V Jet DCs, and similar. For 220V collectors, use the GRIT 220V Collector.

Installation

Plug the collector into the GRIT Collector, plug the Collector into the wall, and pair with the Hub through the GRIT app. Under two minutes.

*GRIT Hub is required for device functionality.

Important Notes

Verify your dust collector draws under 15A continuous on 120V before ordering. Systems with GRIT Track require a software upgrade (+20%) — contact us before ordering so we can configure your devices.

Dust Management
$ 150.00 $ 150.00
$ 150.00
