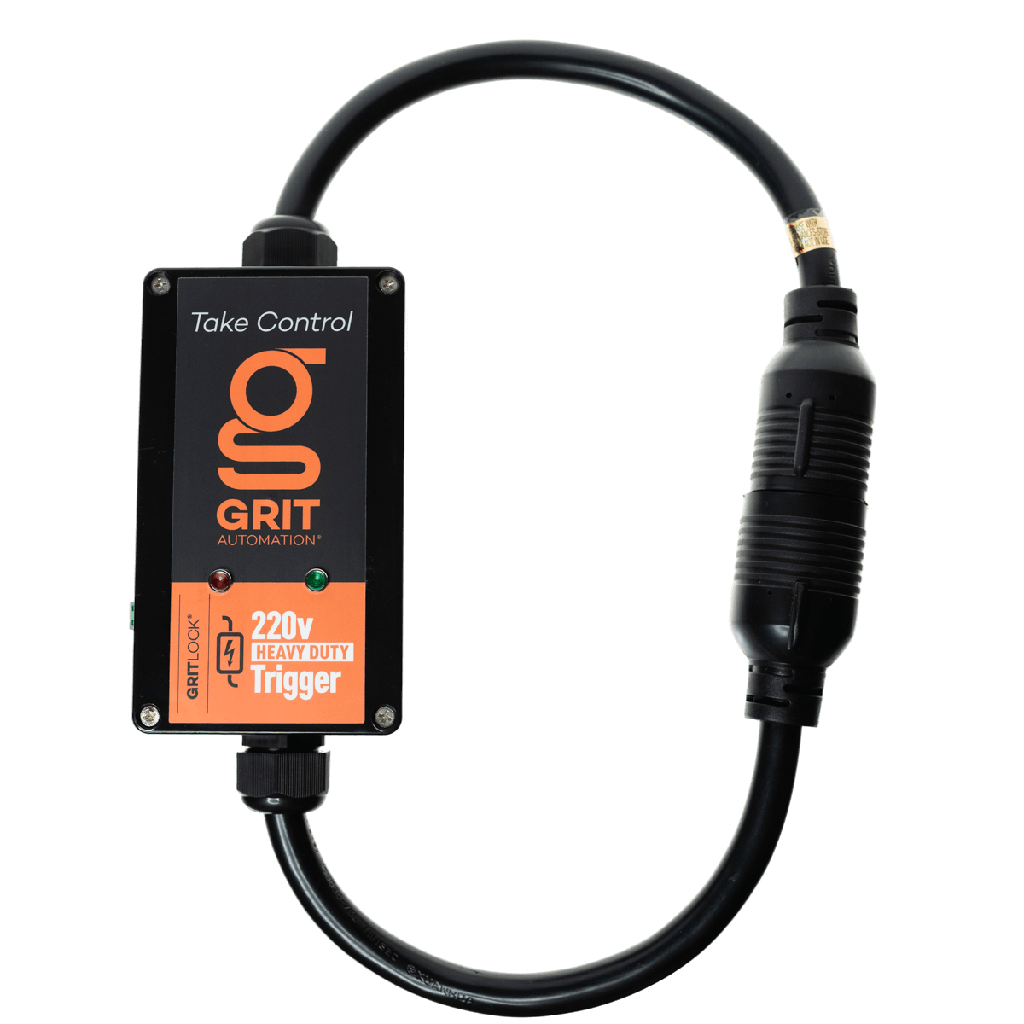

Heavy Duty 220V 35A Trigger

Heavy-Duty Trigger

Plug-and-play power monitoring for 220V shop tools that draw more than 15 amps.

The Heavy Duty 220V Trigger handles the high-draw 220V tools the standard 15A Trigger can't — band saws, shapers, large lathes, and other single-phase 220V equipment up to 35A continuous. Plug it inline between the tool and the wall outlet, no wiring changes. When the tool powers on, the Hub opens the right blast gate, starts the collector, and logs the runtime automatically. One Trigger per tool.

Key Features

• 35A capacity: Handles high-draw 220V tools the 15A Trigger cannot
• Inline current sensing: Detects tool activation with no wiring changes
• Automated dust collection: Opens blast gates and starts collectors on tool-on
• Runtime logging: Tracks who ran the tool, when, and for how long
• Access control lockout: Blocks power until an authorized badge is scanned
• Status LED: Red & Green LED shows locked, idle, or running at a glance

Specifications

• SKU GA-TR2002
• Voltage 220V
• Amperage 35A continuous
• Phase Single-phase
• Plug Options NEMA 6-15 (14 AWG) NEMA 6-20 (12 AWG) L6-20 (12 AWG) L6-30 (10 AWG)
• Connectivity GRIT Mesh Network
• Status Red & Green LED

In the Box

• 1x GRIT Heavy Duty 220V 35A Trigger (GA-TR2002)
• 1x Power cord — plug type customized

Compatibility

Works with any 220V single-phase tool drawing up to 35A continuous. Pair with GRIT Gates and Collectors for full dust-collection automation. Hub Pro required for RFID access control and multi-zone systems. For 120V tools, see the Heavy Duty 120V 35A Trigger. For three-phase or 50A+ loads, see the Industrial Trigger series.

Installation

Plug the tool into the Trigger, plug the Trigger into the wall outlet, and pair with the Hub through the GRIT App. No tools, no wiring, under two minutes.

*GRIT Hub is required for device functionality.

Important Notes

Verify your tool draws under 35A continuous on a 220V circuit before ordering. Systems with GRIT Track require a software upgrade (+20%) — contact us before ordering so we can configure your devices.
