120V 15A Trigger
Single-Phase Trigger
Plug-and-play power monitoring for any 120V shop tool up to 15 amps.

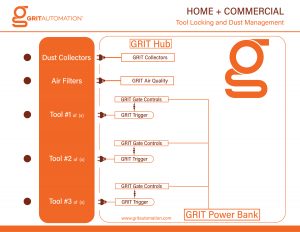

The 120V Trigger sits inline between the tool and the wall outlet, senses when the tool powers on, and tells your GRIT Hub to open the right blast gate, start the dust collector, or enforce access control — all automatically. One Trigger per tool.
Key Features
- Inline current sensing: Detects tool activation with no wiring changes
- Automated dust collection: Opens blast gates and starts collectors on tool-on
- Runtime logging: Tracks who ran the tool, when, and for how long
- Access control lockout: Blocks power until an authorized badge is scanned
- Status LED: Red/green light shows locked, idle, or running at a glance
Specifications
- SKU GA-TR1001
- Voltage 120V
- Amperage 15A continuous
- Phase Single-phase
- Plug Type NEMA 5-15
- Cord 1 ft, 14 AWG
- Connectivity Wi-Fi to GRIT Hub
- Status Red/green LED
In the Box
- 1x GRIT 120V 15A Trigger (GA-TR1001)
- 1x 14 AWG pass-through cord with NEMA 5-15 plug and receptacle
Compatibility
Works with any 120V shop tool drawing up to 15A continuous on a standard NEMA 5-15 outlet. Pair with GRIT Gates and Collectors for full dust-collection automation. Hub Pro required for RFID access control and multi-zone systems.
Installation
Plug the tool into the Trigger, plug the Trigger into the wall outlet, and pair with the Hub through the GRIT app. No tools, no wiring, under two minutes.
*GRIT Hub is required for device functionality.
Important Notes
Verify your tool draws under 15A continuous before ordering. Tools that exceed 15A or run on 220V require the Heavy Duty or Industrial Trigger models.
