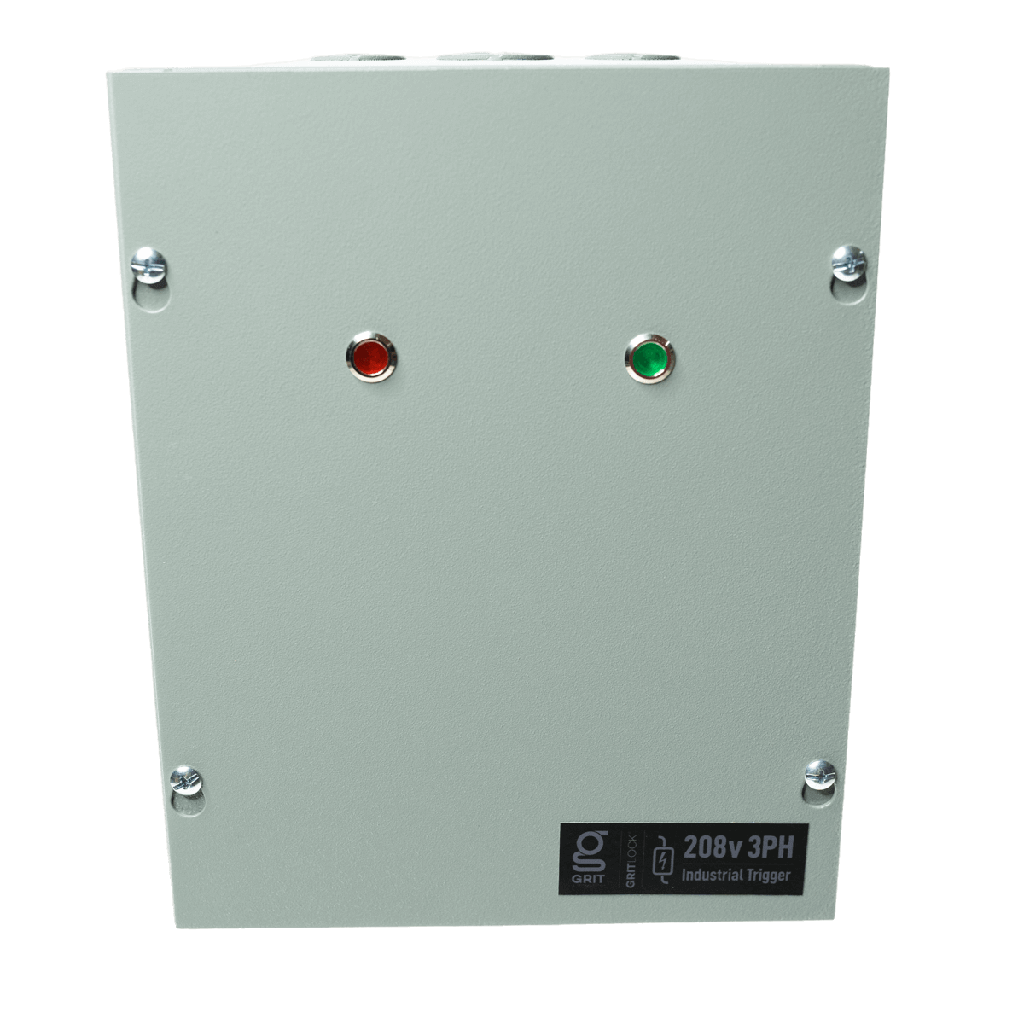

Industrial 208V-240V 3PH 50A Trigger

Industrial Trigger

Hardwired 3-phase control for 208V-240V industrial tools.

The Industrial 208V-240V 3PH Trigger gives you the same GRIT automation as the plug-in models — dust collection, runtime logging, access-control lockout — packaged with a 50A 3-phase contactor in a field-wireable steel enclosure for heavy shop and CNC equipment.

Key Features

• 50A 3-phase contactor: Continuous-duty, higher amperage available on request
• Metal field enclosure: 8" x 10" x 4" steel housing with 16 knockouts
• Automated dust collection: Opens blast gates and starts collectors on tool-on
• Access control lockout: Blocks power until an authorized badge is scanned
• Status LEDs: Red & Green indicators show locked, idle, or running

Specifications

• SKU GA-TR3002
• Voltage 208V-240V
• Amperage 50A continuous
• Phase 3-phase (3PH)
• Enclosure 8" x 10" x 4" steel
• Knockouts 16, 3/4" to 1-1/4"
• Connectivity GRIT Mesh Network
• Status Red & Green LED

In the Box

• 1x GRIT Industrial 208V-240V 3PH 50A Trigger (GA-TR3002)
• Pre-wired 50A 3-phase contactor in 8" x 10" x 4" metal enclosure

Compatibility

For 208V-240V 3-phase tools drawing up to 50A. Higher-amperage contactors available on request. Pro GRIT Track is required for RFID-enabled systems — contact GRIT for details.

Installation

Mount the enclosure near the tool disconnect and land line and load conductors on the contactor terminals. We recommend a licensed electrician for all hardwired installations.

*GRIT Hub is required for device functionality.

Important Notes

Professional electrical installation recommended. Systems with GRIT Track require a software upgrade (+20%) — contact us before ordering so we can configure your devices.
